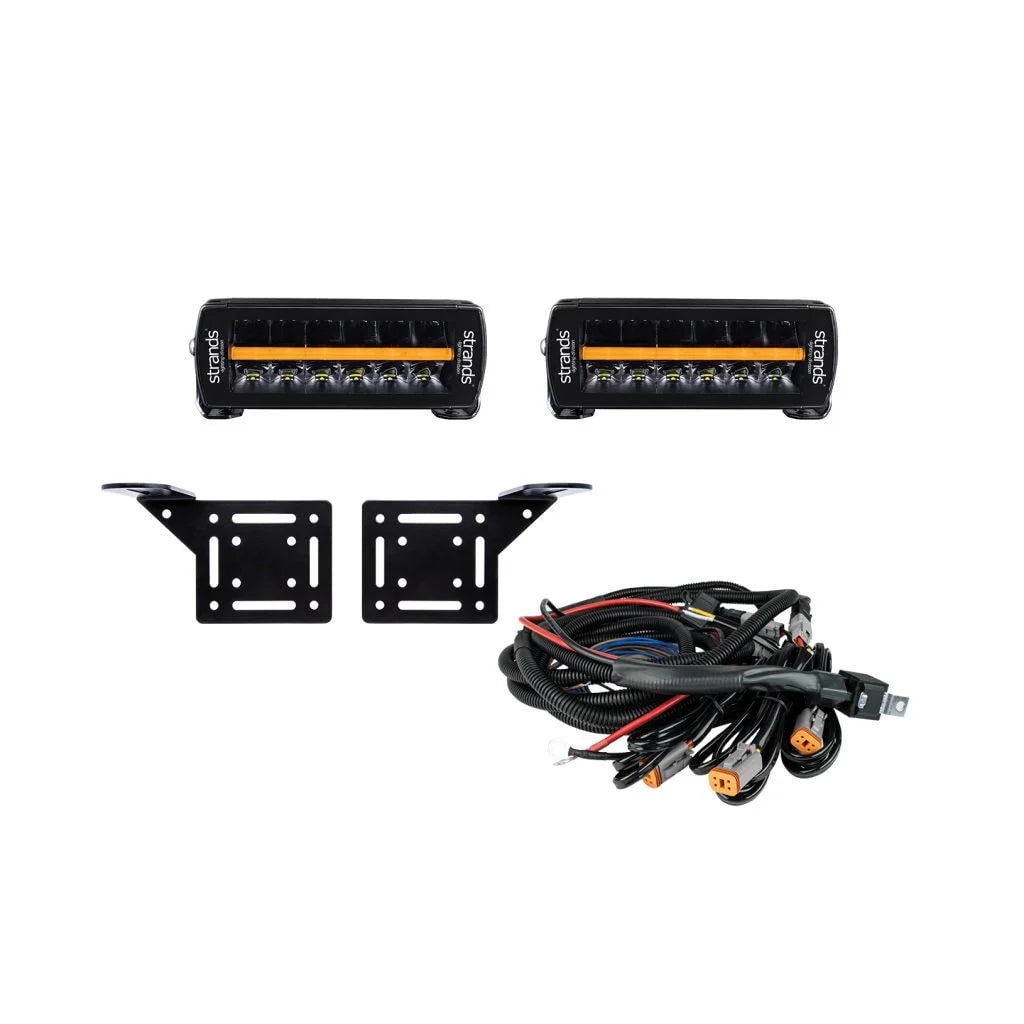

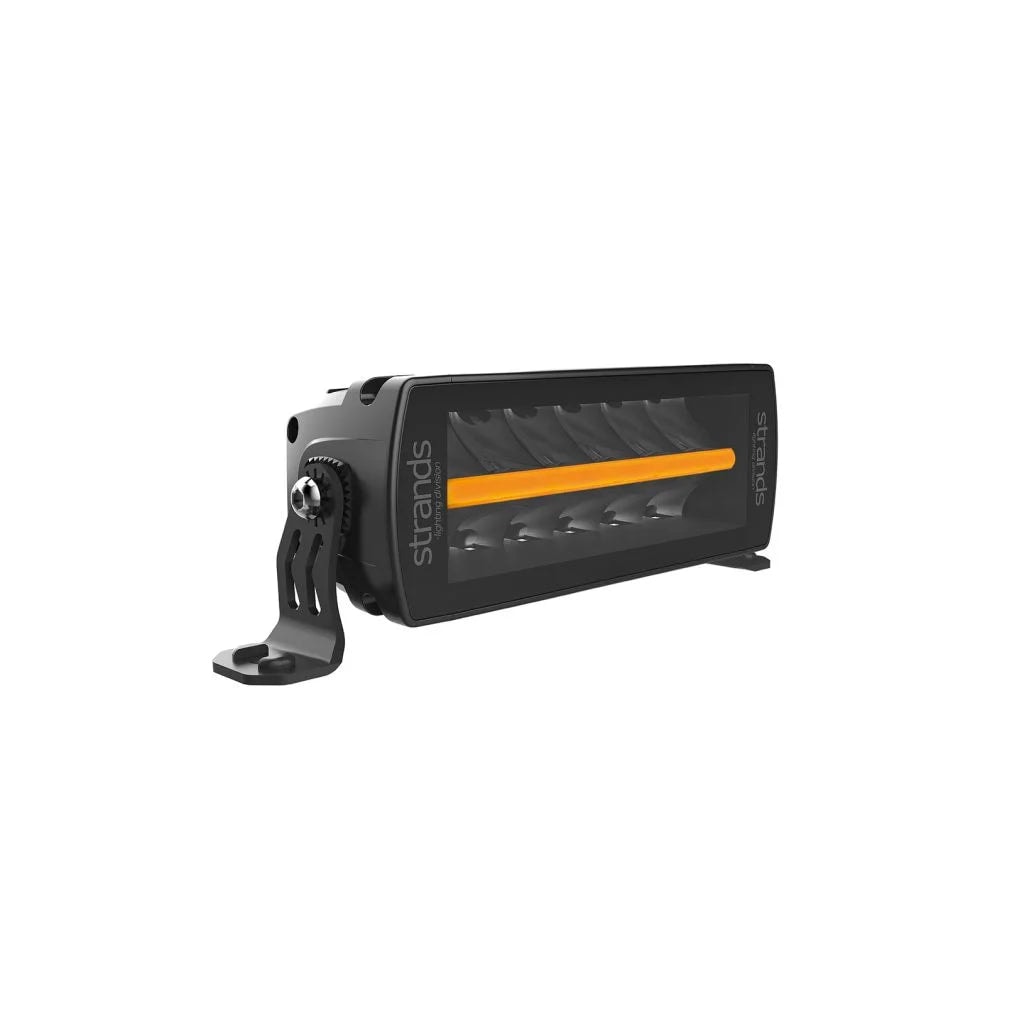

Strands KOMPLETT KIT 2x SIBERIA DR 8″ LED BAR

• Type of lamp LED
• Type of LED Osram
• PCS LED´s 2x 12
• Voltage (V DC) 10-40V DC
• Theoretical effect (w) 12V 60
• Consumption (w) 12V 2x 25.9
• Consumption (w) 24V 2x 27.5
• Theoretical lumen 2x 4800
• Actual lumen 2x 2002
• 1 LUX @ m 633
• Kelvin 6000
• IP-class 67/69K
• Colour housing Black
• Colour lens Clear
• Colour LED´s White and Amber
• Beam pattern Spot
• Position light Yes. white and amber
• Connection DT-4
• Cable length (mm) 500
• Material bracket Stainless steel
• Material housing/chassi Aluminium
• Material lens Polycarbonate
• Length (mm) 205
• Depth (mm) 71.6
• Height (mm) 76
• Height including bracket (mm) 89
• Operating temperature -20°C – +45°C
• ADR-approved No
• E-approved  YES
• According to regulation ECE R112
• Reference number 2x 45
• EMC ECE R10

• Black cable – (Negative)
• Red cable + (Positive)
• White cable White Position light
• Yellow cable Amber Position light
• Mounting details included Screws. washers. bolts

Anleitung
